Possible cause 1
Driveway slopes to garage
The hard surface naturally sends rainfall toward the door.
Drainage symptom guide
Water entering a garage requires interception before the threshold.
Runoff crossing a driveway or sloped approach can reach the garage quickly. The flow line, channel length, grate capacity and downstream outlet all matter.
How this problem can be solved
Intercept the entire driveway flow line before it reaches the garage threshold.
A load-rated channel drain can collect sheet flow across the driveway when it spans the active runoff width, sits below the approach flow line and connects to a solid pipe and protected outlet sized for the contributing area.
- Observe the complete width and direction of driveway sheet flow.
- Place the channel before the threshold and extend beyond both bypass paths.
- Support the channel and grate for the expected vehicle load.
- Connect the outlet, confirm capacity and retain grate-cleaning access.
Correct direction
Install a properly supported channel across the full runoff path with a complete outlet.
Common shortcut
Place a short decorative grate that water bypasses or that settles under vehicle loads.

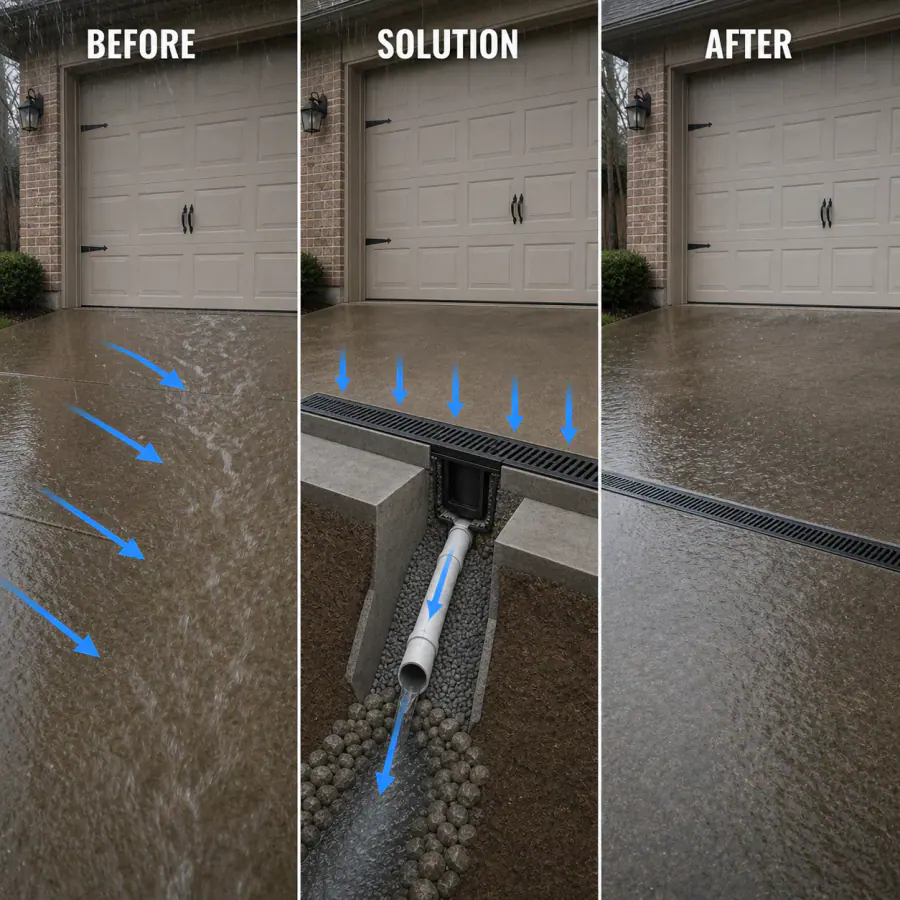

Generated educational illustration. It explains a possible design direction; the final system depends on property measurements and is not presented as a completed project.
Observe during rain
Record where water first appears and the direction it moves.
Check the input
Include roofs, hardscape, irrigation and water entering from outside the immediate low spot.
Confirm an outlet
No collection method works indefinitely without a safe, serviceable place to release water.
Recognize the symptom
What water entering the garage can look like after rain.
The photograph shows the condition at a useful scale. Wide views help trace the source better than a tight picture of water alone.
Plain-language explanation
What is happening in the yard.
Garage water must be stopped before it crosses the door. A small drain off to one side will not help if the driveway sends a wide sheet of water around it.
Professional drainage terms
Evaluation considers approach slope, channel invert, grate capture, load class, concrete bedding, contributing pavement area, solid outlet pipe and downstream capacity.
Plausible causes
Several conditions can create the same visible symptom.
The assessment separates the inputs before recommending a product or excavation.
Possible cause 2
Street or apron contribution
Additional pavement flow enters the approach during intense rain.
Possible cause 3
Short existing channel
Water goes around the ends before reaching the grate.
Possible cause 4
Blocked downstream line
The channel fills because the outlet cannot carry or release the collected water.
If the condition continues
Problems this can cause
Not every wet area produces every outcome, but repeated water can make the yard harder to use and allow secondary problems to develop.
Water crossing the garage threshold
The severity depends on how often water returns, how long it remains and what surfaces or structures are nearby.
Slippery concrete and stored-item damage
The severity depends on how often water returns, how long it remains and what surfaces or structures are nearby.
Sediment accumulating at the door
The severity depends on how often water returns, how long it remains and what surfaces or structures are nearby.
Concrete or channel-edge deterioration
The severity depends on how often water returns, how long it remains and what surfaces or structures are nearby.
Symptom → cause → solution
The same puddle can lead to different first choices.
| What the assessment finds | Direction to evaluate |
|---|---|
| Water crosses the surface | Grading, swale, channel drain or surface inlet |
| Water arrives from a downspout | Solid underground downspout drainage |
| Water moves through saturated soil | French drain or another subsurface collection route |
| An existing drain backs up | Inspection, cleaning or targeted repair |
| Water can be collected but no lower gravity outlet exists | Outdoor sump pump basin and pressure discharge route |
Useful homeowner guidance
What helps before an assessment.
- Video the full driveway width during rain.
- Match grate and channel to vehicle loads.
- Keep the grate removable for cleaning.
- Verify the downstream pipe before widening the inlet.
Local drainage guidance
Where water entering the garage is evaluated locally.
The symptom page explains the cause-and-solution logic. The linked city pages add municipal sources, local development context and service-area details without duplicating this guide.
Yard drainage in Waxahachie, TX →Yard drainage in Prosper, TX →Yard drainage in Mansfield, TX →Yard drainage in Burleson, TX →
Each city guide combines the regional drainage method with verified local context, common property conditions and direct links to the relevant problem and service pages.
Water Entering the Garage FAQ
Questions to settle before work begins
These answers are general. Final recommendations depend on the property, elevations, utilities and outlet.
How long is too long for water to remain?
The useful comparison is how this area behaves versus surrounding surfaces after the same rain. Record the timing rather than relying on a single photo.
Can I add topsoil to the low area?
Filling a depression without preserving a lower path can move water toward the house, fence or another part of the yard.
Will a French drain solve this symptom?
Only if subsurface collection fits the actual source and a usable outlet exists. Surface or roof water may need a different first choice.
When would an outdoor sump pump be considered?
Only when water can be collected but measured elevations do not provide a dependable gravity route to a safe lower outlet.
What should I send for an assessment?
Wide photos during rain, close photos of inlets and downspouts, the approximate wet duration and the property ZIP code.
Assessment first
Find the cause of water entering the garage before choosing the system.
Photos during or immediately after rain are especially useful.
