Trace the input
Confirm the wet corridor is receiving subsurface water rather than only roof runoff.
Subsurface drainage
French drain installation for saturated soil and subsurface water.
A French drain can collect water moving through saturated soil—but only when fabric, clean aggregate, pipe fall and the outlet form one working path.
See the difference first
A French drain needs separation fabric, open aggregate, pipe fall and a real outlet.
Before reading the technical details, compare the complete route with the shortcut that commonly fails.
Request This Assessment

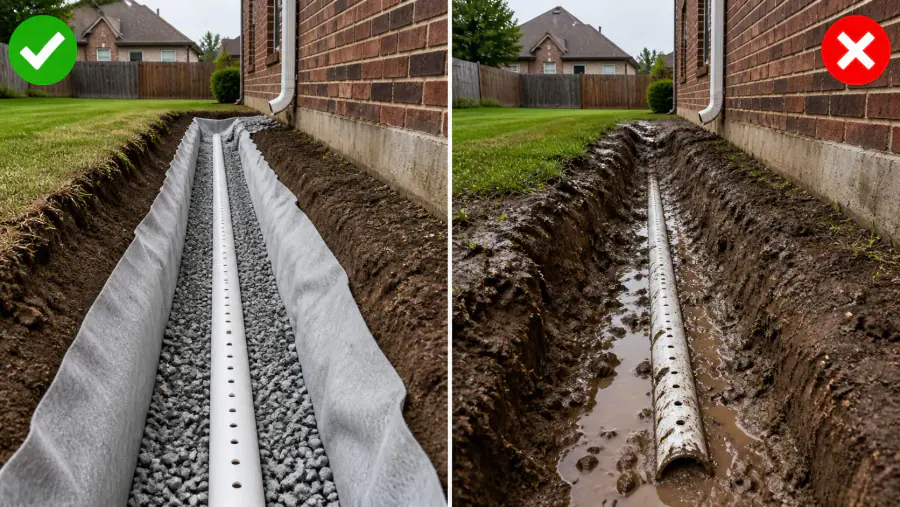

Correct approach
Use nonwoven geotextile to separate soil from clean angular aggregate, surround the perforated pipe and maintain usable fall to a confirmed outlet.
Common failure
A perforated pipe laid in mud without a complete gravel envelope can collect sediment, lose open space and leave water beside the foundation.
Generated educational comparison. It explains an installation principle and is not presented as a completed Texas Yard Drainage project.
Best fit
A defined wet corridor where water moves through saturated soil and a continuous lower outlet is available.
Not the right shortcut
Fast surface runoff, roof discharge or a single low point that needs direct surface collection.
First design question
Where can the water go with continuous fall, safe discharge and practical maintenance access?
What this service means
The same method explained in plain language and professional terms.
Plain-language explanation
A French drain is a gravel-filled trench that relieves water moving through wet soil. It is not simply a perforated pipe and it is not automatically the best answer for a fast surface puddle.
Technical explanation
Nonwoven geotextile separates fine soil from washed angular aggregate. The aggregate provides interconnected void space, while perforated pipe within the stone carries collected subsurface water along a continuously falling route to a serviceable outlet.
How the work is planned
From diagnosis to a serviceable drainage route.
The materials are selected after the water source and physical route are understood.
Measure the route
Establish trench elevation and continuous fall before excavation continues.
Build the system
Install geotextile, clean aggregate and perforated pipe as one separated assembly.
Test and restore
Complete and protect the outlet, then restore turf without contaminating the stone.

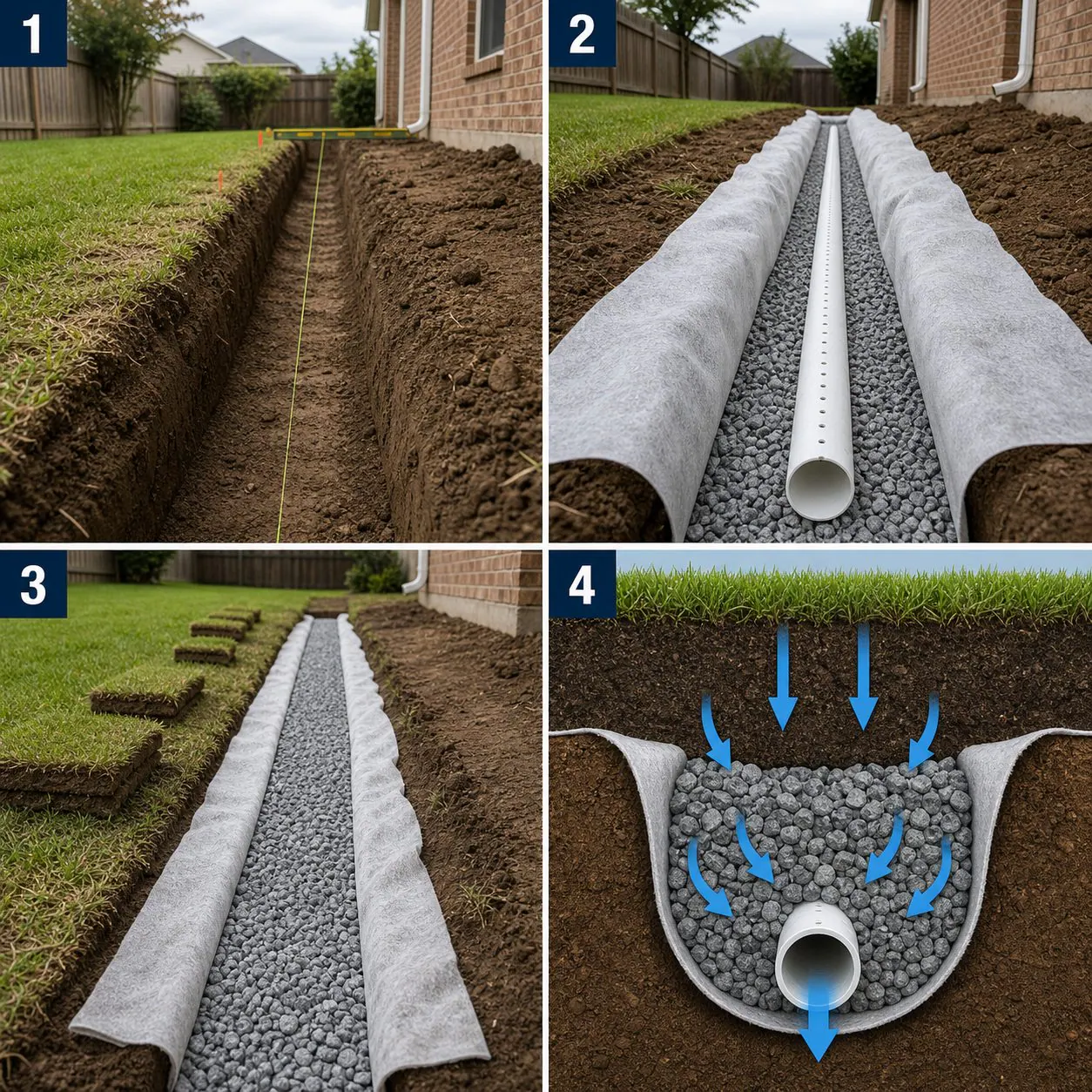

Installation and cross-section
What a complete French drain assembly should communicate.
The visual separates the collection trench from the cutaway so the buried materials and water movement remain understandable.
- Trench path and fall are established first.
- Fabric separates fine soil from clean aggregate.
- Perforated pipe is surrounded by aggregate—not laid in mud.
- The outlet remains a visible, maintainable part of the system.
Installation and cross-sectionGeneral concept
French Drain Installation in North Texas
Why Dallas–Fort Worth soil, storms and property elevations affect this service.
Local conditions change the design
Fine-textured North Texas soils can migrate into unprotected stone and reduce open space. Clean aggregate and complete fabric separation are especially important where clay and construction compaction keep side-yard corridors saturated.
The outlet is part of the system
Collection alone does not remove water. Gravity systems require a continuously lower, maintainable discharge point. Pumped systems require a protected pressure discharge and safe service access. In both cases, the destination must be confirmed before installation.
Homeowner checks that remain useful
- Ask where the pipe discharges before approving the trench.
- Do not substitute soil-contaminated stone for washed aggregate.
- Keep roof downspouts in solid pipe unless specifically engineered otherwise.
- Preserve a visible or reachable maintenance point.
What an estimate should describe
A useful scope identifies the input, collection point, material type, pipe or surface route, access constraints, outlet protection and restoration. It should also explain why this method fits better than the common alternatives.
Decision guide
When another drainage method may be a better fit
| Observed condition | Direction to evaluate | Reason |
|---|---|---|
| Water arrives mainly from a downspout | Underground downspout drainage or source control | Keep concentrated roof water in a solid conveyance route. |
| Water collects at one visible low point | Surface inlet or limited regrading | Capture the water where it actually concentrates. |
| Broad runoff follows a shallow path | Grading or a swale | A stable surface route may be simpler than another buried pipe. |
| An existing drain once worked | Inspection, cleaning or repair | Locate the failed component before replacing the system. |
| No gravity outlet is physically available | Outdoor sump pump system | Collect water in a serviceable basin and pump it to a protected outlet only after elevations rule out gravity. |
Local drainage guidance
French Drain Installation across selected Dallas–Fort Worth service areas.
Use the city guide for local drainage context, then return to this central service page for system design, correct installation and failure patterns.
Yard drainage in Grapevine, TX →Yard drainage in Richardson, TX →Yard drainage in North Richland Hills, TX →Yard drainage in Princeton, TX →
Each city guide combines the regional drainage method with verified local context, common property conditions and direct links to the relevant problem and service pages.
French Drain Installation FAQ
Questions to settle before work begins
These answers are general. Final recommendations depend on the property, elevations, utilities and outlet.
Will a French drain remove every puddle?
No. It primarily manages water entering a gravel trench through saturated soil; rapid surface flow may need an inlet or grading.
Why does clean aggregate matter?
Open spaces between clean stones let water move toward the pipe. Fine material reduces those spaces.
Does the pipe need fall?
The route needs usable fall toward a confirmed outlet; exact design depends on elevation, length and site constraints.
Can it discharge anywhere downhill?
No. The destination must be safe, physically workable and consistent with property and applicable local requirements.
Assessment first
See what the water is doing before selecting the system.
Photos during or immediately after rain are especially useful.
